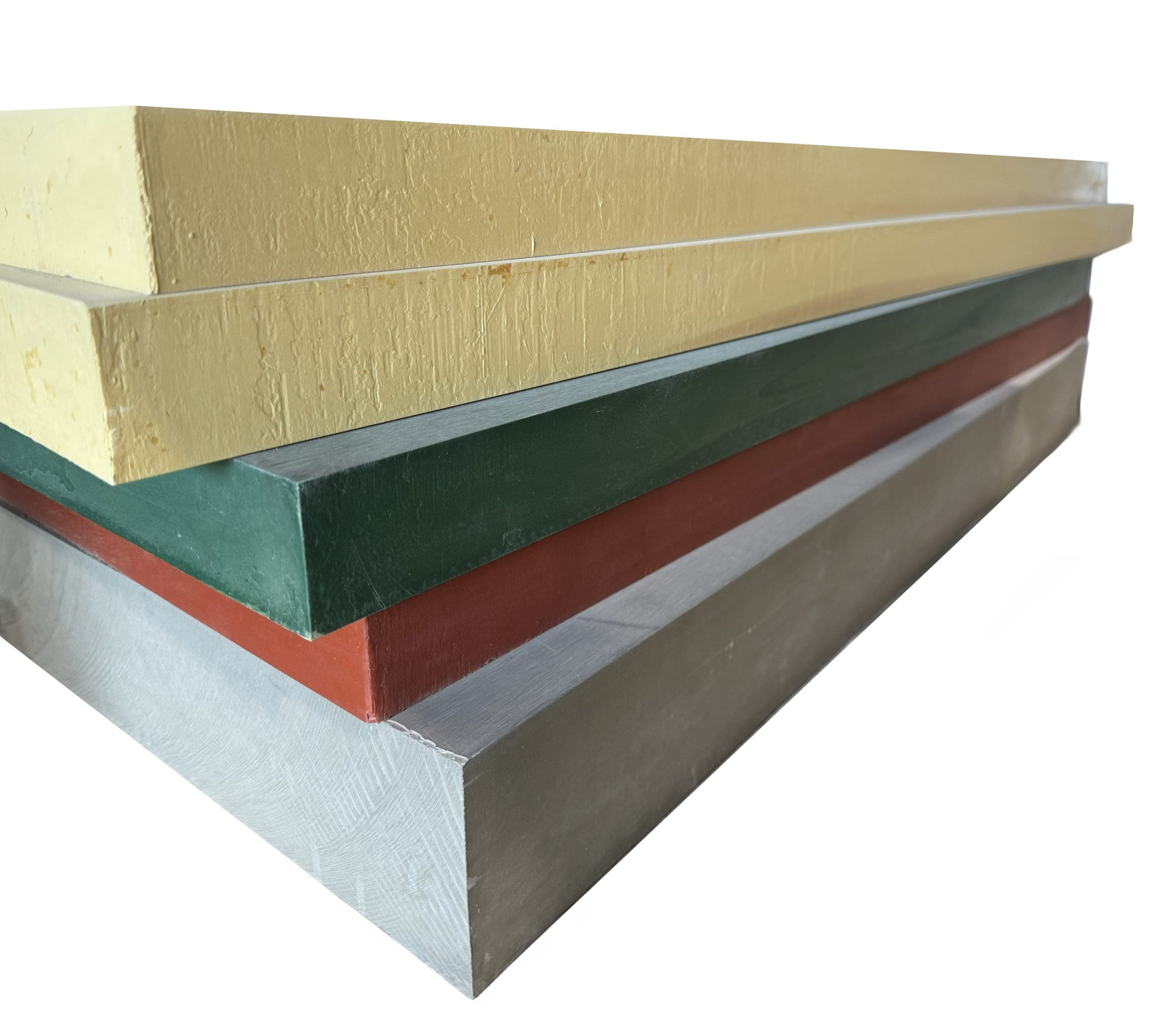

MODELLING / TOOLING BOARDS
Lavender Composites is the Australian distributor of NECURON® modelling / tooling board products manufactured by NECUMER. These high quality German made boards cover a broad range of different grades suitable for the manufacture of low temperature wet lay up tools, through to high temperature autoclave tools. Grades are also available for styling models, casting patterns, checking fixtures and sheet metal forming. We also provide NECUMER specialty polyurethane and epoxy adhesives made specifically for NECURON modelling / tooling boards.
Lavender is also able to offer 5 axis CNC machining services to produce master models or tooling using these boards.
Download Modelling / Tooling Stock List PDF
| MODELLING - TOOLING BOARDS STOCK LIST | ||||||
| MODELLING BOARDS | ||||||
| Grade | Colour | Applications | Heat Deflection Temp. (°C) | Density (g/cm3) | Product Code | Board Size |
| NECURON 301 | Styling, wind tunnel and design models, substructure for hard styling clay | 65 | 0.3 | 301/15-5-100 | 1500 x 500 x 100 | |
| NECURON 480 | Styling, architectural and master models | 65 | 0.48 | 480/15-5-25 | 1500 x 500 x 25 | |
| 480/15-5-50 | 1500 x 500 x 50 | |||||
| 480/15-5-100 | 1500 x 500 x 100 | |||||
| 480/15-5-150 | 1500 x 500 x 150 | |||||
| NECURON 651 | Master models, cubing models, styling models and patterns, checking fixtures | 70 | 0.7 | 651/15-5-25 | 1500 x 500x 25 | |
| 651/15-5-50 | 1500 x 500 x 50 | |||||
| 651/15-5-100 | 1500 x 500 x 100 | |||||
| 651/15-5-150 | 1500 x 500 x 150 | |||||
| 651/15-5-200 | 1500 x 500 x 200 | |||||
| NECURON750FG | Master models, cubing models, styling models and patterns, checking fixtures | 75 | 0.84 | 750FG/C605-100 | Ø605 X 100 | |
| TOOLING BOARD | ||||||
| Grade | Colour | Applications | Heat Deflection Temp. (°C) | Density (g/cm3) | Product Code | Board Size |
| NECURON 730 | Epoxy board for prepreg layup tools and vac form tools | 130 | 0.85 | 730/15-5-50 | 1500 x 500 x 50 | |
| 730/15-5-75 | 1500 x 500 x 75 | |||||
| 730/15-5-100 | 1500 x 500 x 100 | |||||
| NECURON 840 | Tools for serial production of small batch sizes, laminating tools, vacuum forming, sheet metal forming tools | 130 | 0.98 | 840/12-4-50 | 1200 x 400 x 50 | |
| 840/12-4-75 | 1200 x 400 x 75 | |||||
| 840/12-4-100 | 1200 x 400 x 100 | |||||
| NECURON 1007 | Laminating, bath and foundry models, fixtures and tooling jigs, tools for serial production of small batch sizes | 90 | 12 | 1007/12-4-50 | 1200 x 400 x 50 | |
| 1007/12-4-100 | 1200 x 400 x 100 | |||||
| 1007/12-4-150 | 1200 x 400 x 150 | |||||
| NECURON 1050 | Master, hammer form and flanging models, fixtures and tooling jigs, foundry models, sheet metal forming tools | 70 | 1.2 | 1050/10-5-50 | 1000 x 500 x 50 | |
| 1050/10-5-100 | 1000 x 500 x 100 | |||||
| NECURON 1300 | Sheet metal forming tools and draw dies, foundry models and assemblies, hammer form tools | 70 | 1.15 | 1300/10-5-50 | 1000 x 500 x 50 | |
| 1300/10-5-100 | 1000 x 500 x 100 | |||||
| NECURON 1600 | Aluminium filled. Vac-form tools and deep-draw dies, foundry models and assemblies, fixtures and gauges | 100 | 1.6 | 1600/10-5-100 | 1000 x 500 x 100 | |
| ADHESIVE | ||||||
| Product Code | Colour | Base | Clamp Time | Kit Size | ||
| K4 | Polyurethane | 15-30 minutes | 0.75 kg | |||
| K6S | Polyurethane | 30 minutes | 2 kg | |||
| K7S | Epoxy | 5 hours | 1.25kg | |||
| K8 | Epoxy | 5 hours @ 20°C | 2 kg | |||
| 2 hours @ 50°C | ||||||
| K8T | Epoxy | 5 hours @ 20°C | 1.2 kg | |||
| 2 hours @ 50°C | ||||||
| NOTE – The user will determine the suitability for use of these products. The recommendations / data given above are based on information we believe to be accurate. They are intended to be used only as a guide for selection for end-use evaluation and do not constitute a product specification. Lavender CE cannot assume responsibility for results obtained by use of these products as we have no control over end-use applications or handling. Lavender CE therefore specifically disclaims any damage or loss of any kind in relation to the use of these products. |
